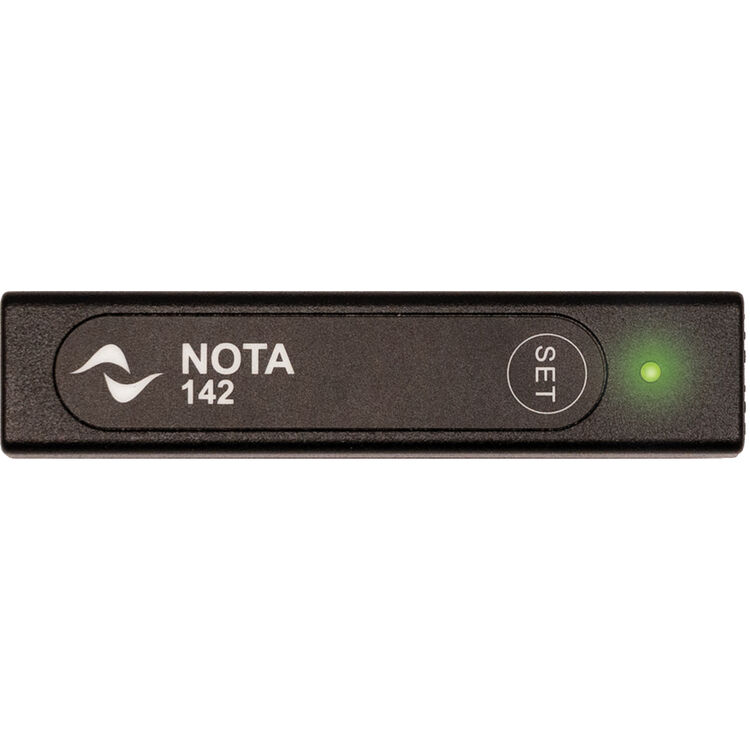

NOTA is an ultra compact, versatile PoE/PoE+ amplifier designed for networked AoIP applications where space and wiring constraints are a concern.
Tailored for AV and IT system integrators, it offers an intuitive installation process with a single Ethernet cable for power and data.
With its modular design and flexibility, NOTA seamlessly integrates into existing systems and expands them as needed, ensuring efficient operation in any networked environment.
Compact Design
With its small form factor, it seamlessly integrates into tight spaces and offers the flexibility to expand your system as it grows.
Easy Installation
PoE integration simplifies setup by delivering power and data over a single cable, reducing wiring complexity.
AES67 Support
Ensures high-quality AoIP integration, it can be installed in confined spaces without the risk of overheating.
USB Connectivity
The USB-C port allows connectivity for external multimedia devices, while also acting as a USB to AES67 converter.
Built to Expand
Whether starting with a single zone or scaling up to large, complex installations, Nota is designed to grow with your needs. Its compact form and powerful performance allow it to seamlessly integrate into existing systems, providing flexibility for future expansion. Ideal for commercial and conferencing installations, it adapts effortlessly, ensuring both immediate and long-term scalability.
Features
-
PoE/PoE+ Integration
Enables power and data transmission over Ethernet, simplifying installation and reducing wiring complexity.
-
Compact & Space-Saving Design
Highly compact form factor, ideal for installations with limited space, ensuring easy integration in tight environments.
-
Optimized Performance
Delivers 140 W power across two channels, ensuring high performance considering its compact form factor.
-
Auto Setup
Automatically measures the impedance curve of connected speakers and applies a high-pass filter in order to optimize sound quality and preserve the speakers.
-
Onboard DSP
Includes built-in DSP, offering audio control, speaker health monitoring, and system optimization.
-
Control Options
Compatible with ArmoníaPlus software and third-party software products through the available APIs for easy control.
-
USB Connectivity
Features a USB-C port for expanding systems by connecting external multimedia devices and acting as an USB to AES67 converter, enhancing system flexibility.
-
AES67 Support
Native support for the AES67 standard, enabling easy AoIP integration with other networked systems.
-
Cloud Monitoring
With Verso Gateway, the amplifier supports cloud monitoring via MyUniverso, allowing for real-time system diagnostics and control from anywhere.
Specifications
| Form Factor/Type |
Tabletop (Rack-Mountable with Included Hardware)
|
| Number of Amplifier Channels |
2
|
| Load Impedance/Voltage Support |
2 / 4 / 8 / 16 Ohms
|
| Power Rating per Channel |
2x 35 W at 2 Ohms 2x 50 W at 4 Ohms 2x 35 W at 8 Ohms 2x 30 W at 16 Ohms
|
| Channel Bridging & Power Sharing |
2x 140 W Peak Bridged at 4 Ohms
|
| Amplifier Class |
Class-D
|
Signal Processing
| DSP |
Yes: 24-Bit DSP at 48 kHz
|
| Audio Delay |
Adjustable Up to 10 ms
|
| EQ & Filters |
EQ (Unspecified Type)
|
| Dynamics |
Peak Limiter
|
Connectivity
| Analog Audio I/O |

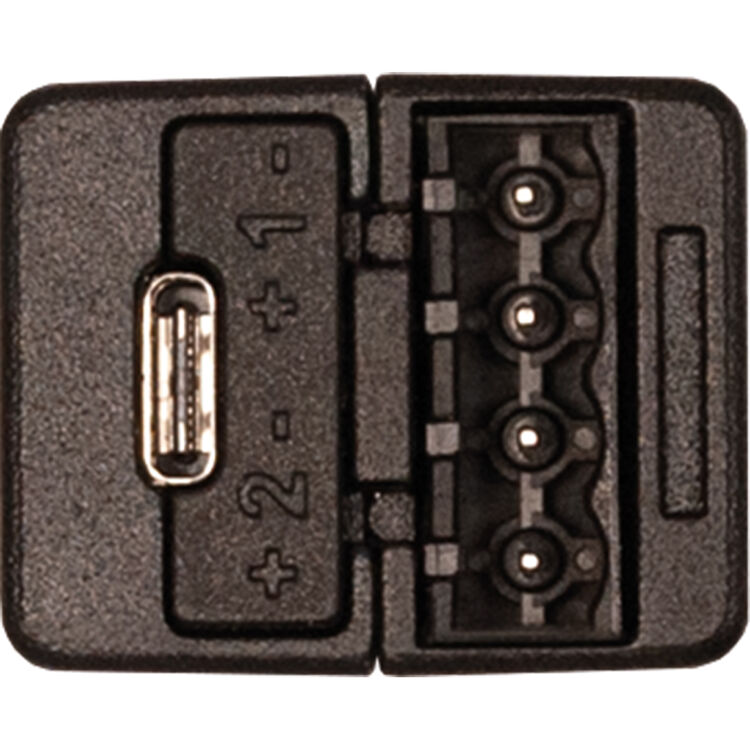

1x Block 4-Pin Output
|
| Digital Audio I/O |
No
|
| Network I/O |

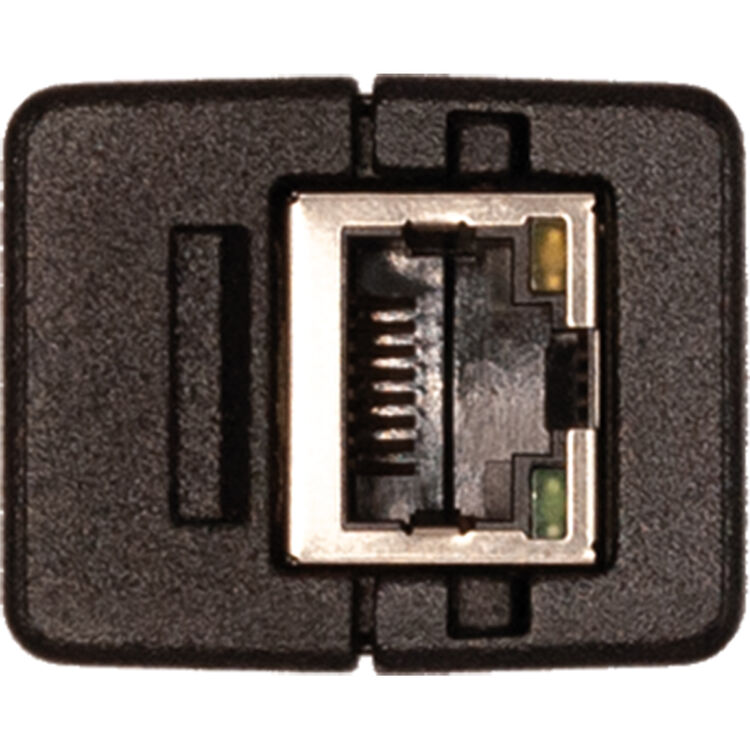

1x RJ45 AES67
|
| USB I/O |
1x USB-C
|
| Phantom Power |
No
|
| Wireless |
No
|
Power
| Current Consumption |
600 mA
|
Physical
| Display |
Single-LED Indicators Only
|
| Operating Conditions |
0 to 95°F / -17 to 35°C at 0 to 90% Humidity
|
| Dimensions |
4.5 x 1.2 x 1" / 115 x 31.4 x 25.4 mm
|
| Weight |
0.4 lb / 198 g
|
Packaging Info
| Package Weight |
0.735 lb
|
| Box Dimensions (LxWxH) |
7.7 x 3 x 2"
|
